To see the AGV in operation, click one of the links in the table below:
Obstacle-Free Path Video | Obstacle Avoidance Video |
128kbps | 128kbps |
64kbps | 64kbps |
28kbps | 28kbps |
In the following videos, a client connects to the Orders Server,
issues an order and then watches the AGV's trajectory. The Orders Server
communicates with the AGV through radio transceiver. Note that the two videos,
although separated, were recorded simultaneously.
Orders Server Operation Video | Client Operation Video |
128kbps | 128kbps |

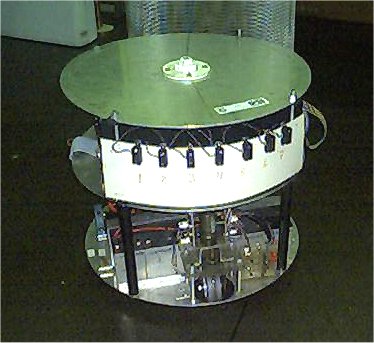

The CONTROLAB AGV is an electric tricycle vehicle. It moves autonomously within office
environment and follows instructions issued by any station connected to the
internet. The Tele-commanded Autonomous Guided Vehicle is equipped with a radio transceiver, hardware/software resources for storing and processing information
and an "electronic stick" consisting of infrared sensors for
detecting unknown obstacles. The AGV uses a similar strategy adopted by a blind
person to avoid obstacles when walking. Initially, it moves following a global
Potential Field defined by the floor plan. While the AGV is moving, the original
field is modified each time the stick detects an obstacle. These adaptations are
performed by
simply adding two previously calculated potential
field values on a grid, the field due to the floorplan and the potential field
associated with the single point reached by the stick. The computational effort for this adaptation is very low
and, as a consequence, it is performed in real
time.
The main features of the CONTROLAB AGV are:
It's a tricycle carlike AGV; | |
It's follows orders issued by client stations connected to the internet; | |
It's Global navigation function demands very low computational load and can be used to avoid any kind of obstacle; | |
It requires low cost sensors. |
CPU: Pentium based system | |
Batteries: 6 Lead Acid, 12V, 7Ah. Runtime: 4 hours | |
Speed: 0.4m/s | |
Motor: 3 DC servo motors (2 drive, 1 steering) | |
Height: 0.45m | |
Diameter: 0.50m | |
Weight: 37.5Kg | |
Wireless Communication: Radiometrix 40Kbps | |
Sensors: Infrared "Electronic Stick" based on Sharp's GPD2D02 infrared sensors |
